Why we love hung windows

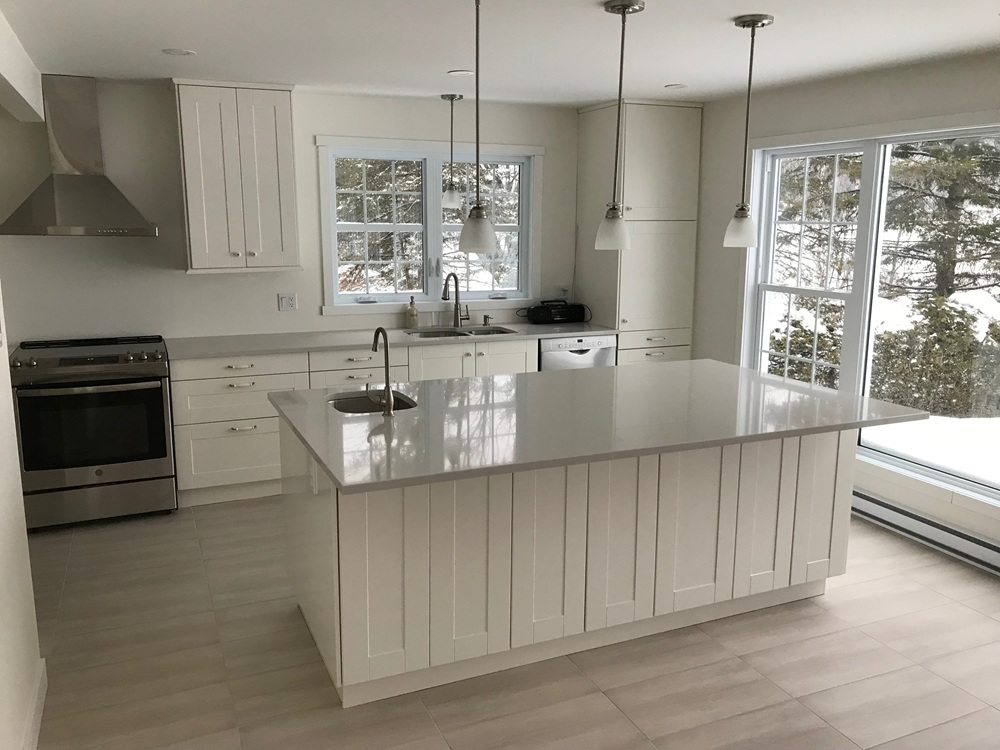

Effortless opening & closing

Forget about the old kinds of hung windows that took all your strength to open! Our model slides like a charm thanks to the constant force balance system and highly resistant pads concealed within the frame.

Pivoting panes for easy cleaning

Traditional hung window models were hard to clean because you could not wash the exterior from inside. Our model is equipped with an integrated and aesthetic tilt latch system making window panes easy to tilt and clean.

Angled sill to drain water

At Vaillancourt, we have designed an angled sill for our hung windows that allows water to drain easily away from your home. Combined with our window panes, mouldings and double or triple glass options, it is a system exclusive to us.

Brochures and guides View the product sheet

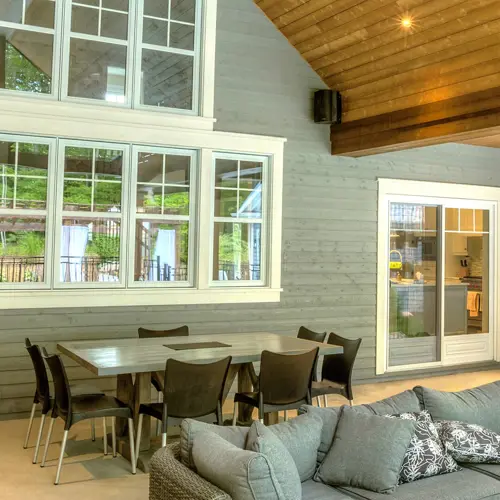

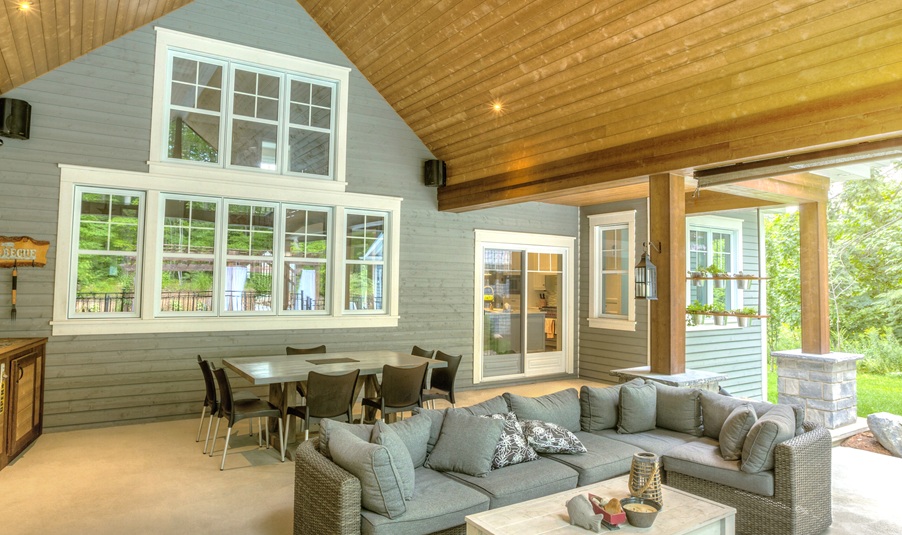

Design of seven white PVC Vaillancourt Doors and Windows sash windows seen from a large covered outdoor terrace.

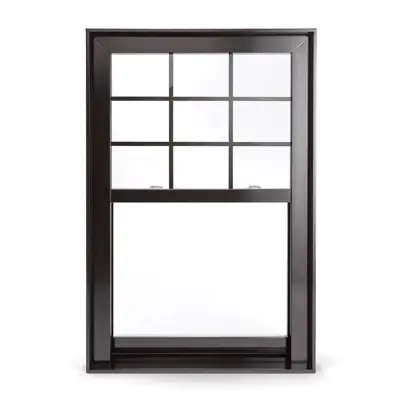

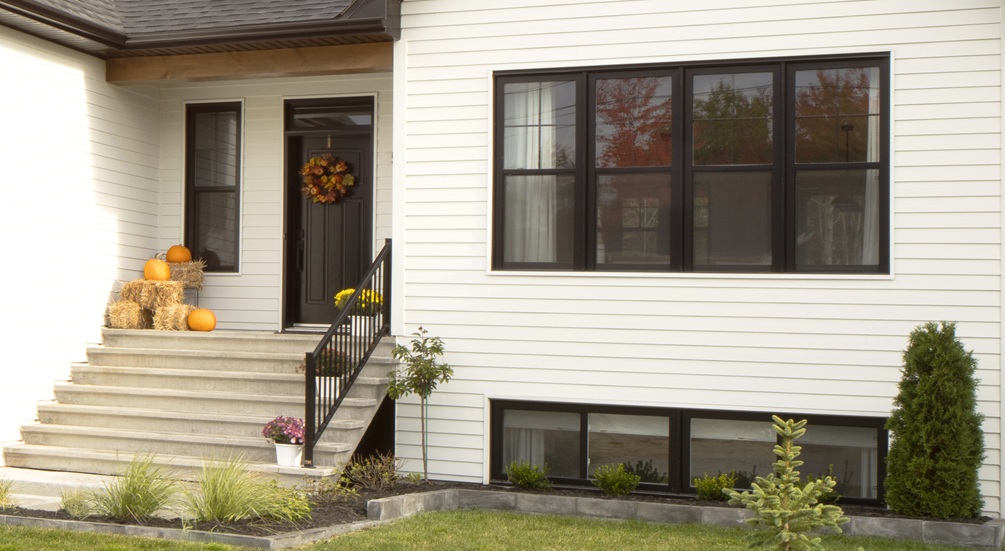

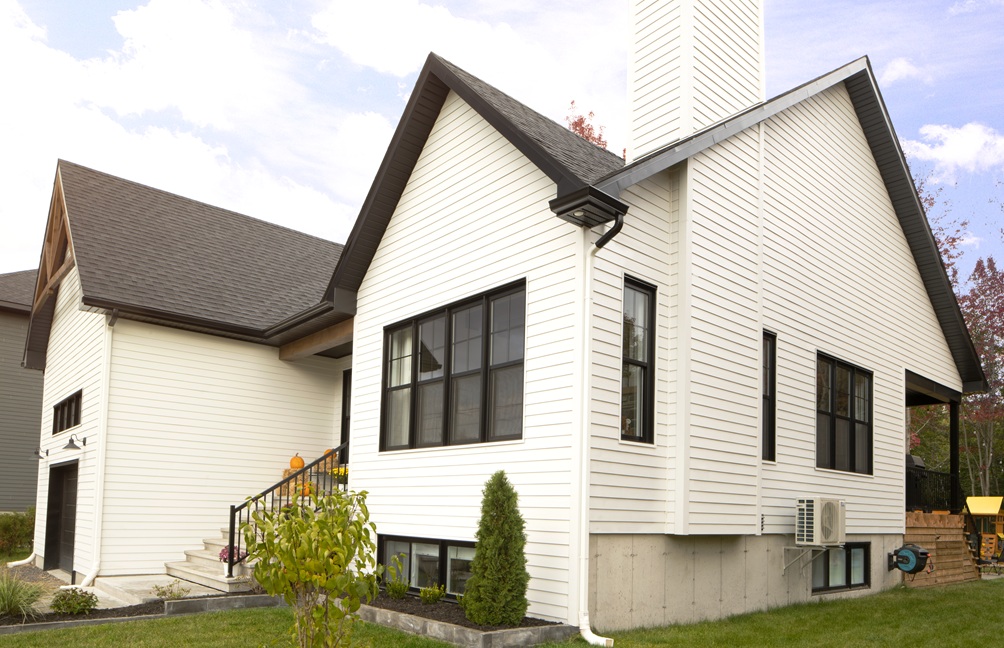

Black hung windows with integrated PVC grilles at the top and solid glass at the bottom, from Vaillancourt doors and windows

Black hung window with integrated grilles

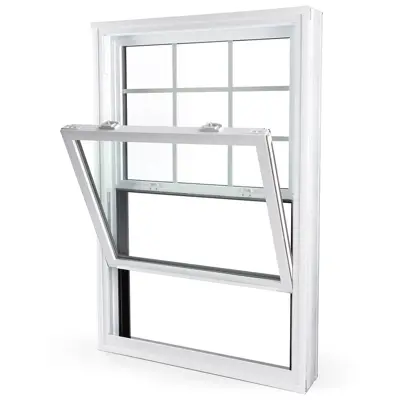

Hung windows in PVC with white frame. The window is open and showing panes that pivot inwards for easy cleaning

Easy cleaning thanks to panes that pivot inwards

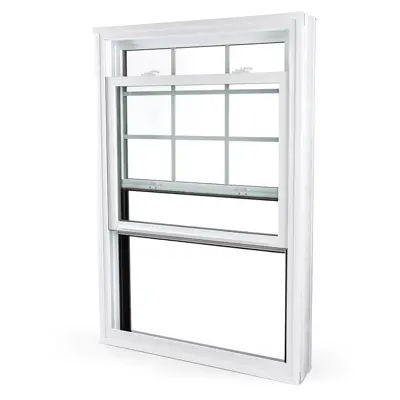

Open hung windows seen from the inside, in white PVC with nine grilles at the top of the window

Black hung window with integrated grilles

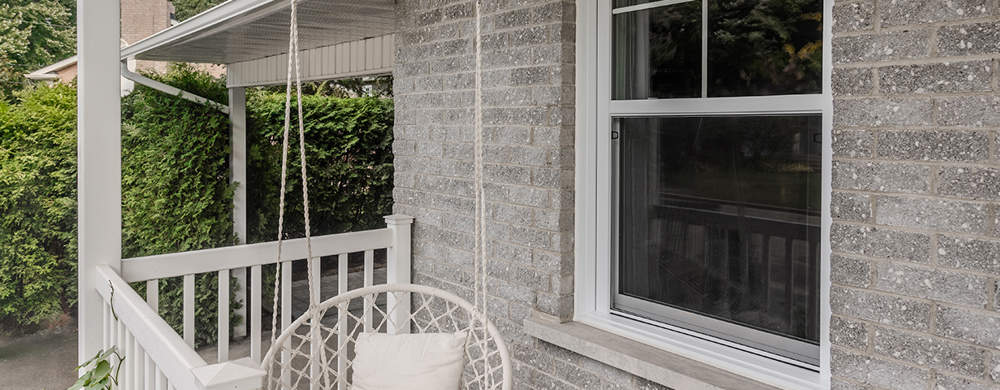

Hung window

Look at examples of our achievements

Available options

Hung windows

Unlimited choice of colours

We have an unlimited choice of colours! Here are some of the most popular shades. If the colour you want is not among our standard shades, bring us your sample, and we will develop it for you!

See popular shades

Colour palette selection for custom door and window design.

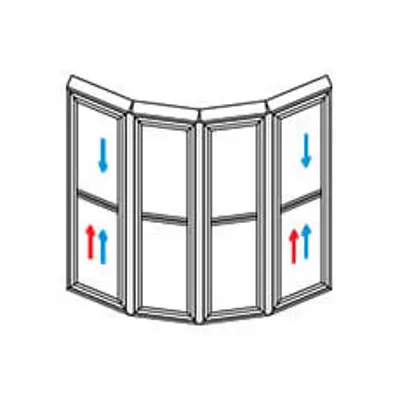

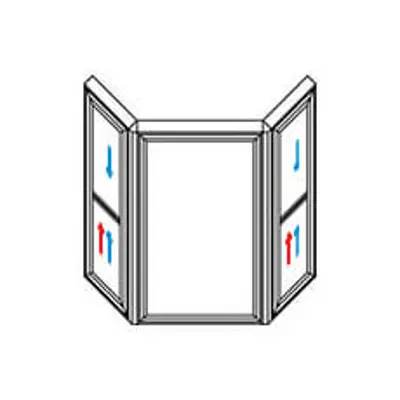

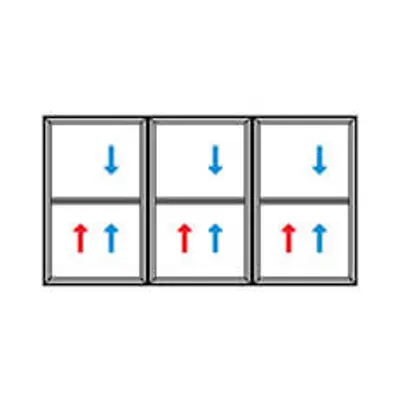

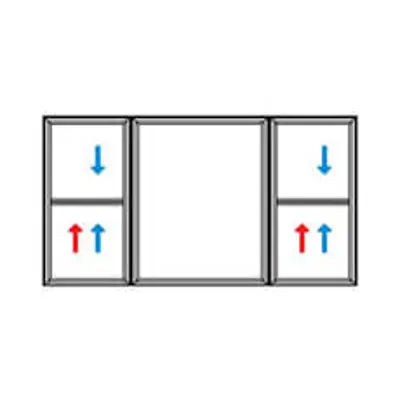

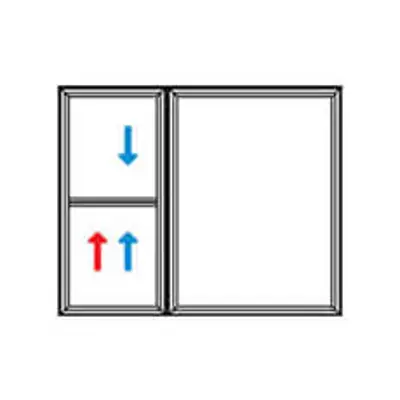

Various configurations for hung windows

Configurations vary by model: hung windows are either single (red arrows in the image) or double (blue arrows in the image).

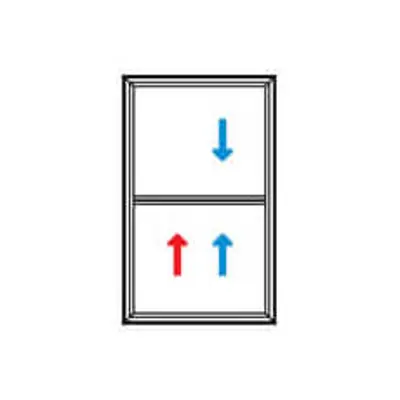

Illustration of a two-section hung window configuration. Single: red arrows go up, double: blue arrows go up and down

1 section

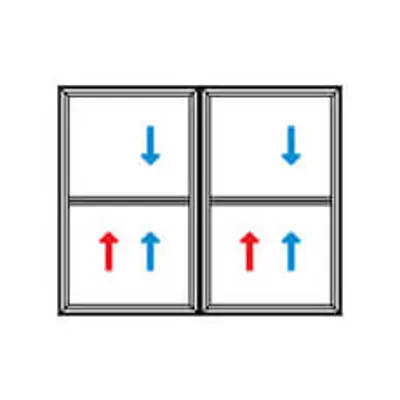

Hung window configuration. Simple; red arrows down to up. Double; blue arrows down to up and up to down

2 sections

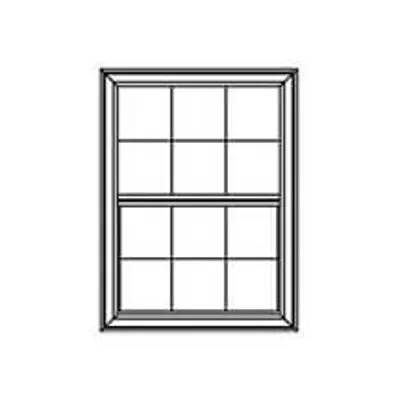

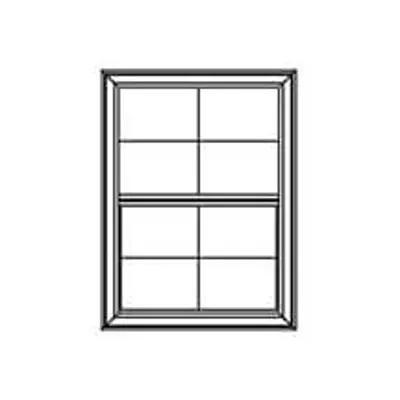

Complete line of grilles

Give your home a unique style by adding grilles sealed between two panes of glass.

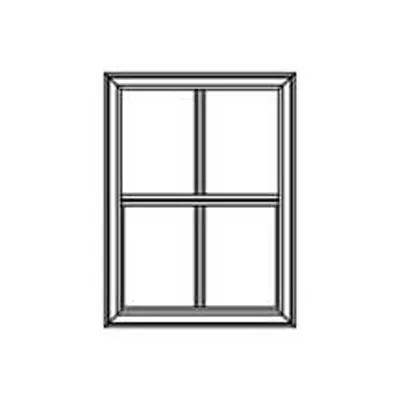

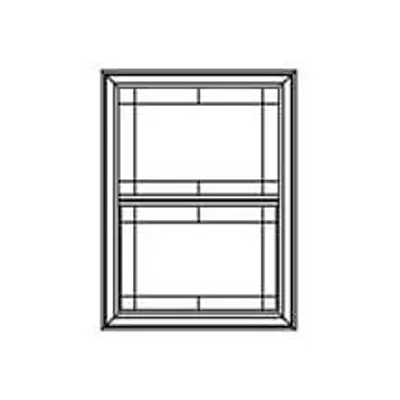

Illustration of sealed grilles for hung windows with cross separation in the center to have four glass panes

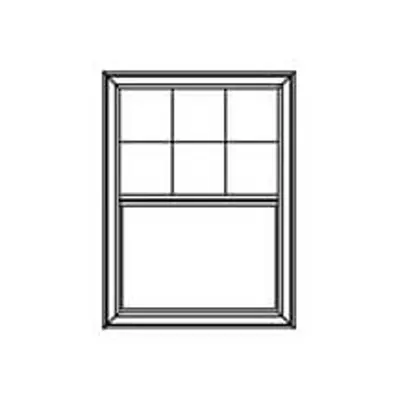

Illustration of sealed grilles for hung windows with six panes at the top and full glass at the bottom from Vaillancourt

Choice of exterior trim mouldings

Here are applied mouldings for windows assembled with transoms and/or architectural windows (measurements are in inches).

Cross-section diagram of an energy-efficient PVC window frame.

Brick
1 1/4" x 3 1/2"

Brick
1 1/8" x 1 1/8"

Variety of integrated grilles

Grilles integrated between two panes of glass are available in all colours and match the colour of the entire window.

Aperçu de carrelage intégré rectangulaire 1/4" x 1" de couleur blanc pour personnaliser votre porte d’entrée de Vaillancourt

Rectangular
1/4" x 1" white

Rectangular 1/4" x 5/8" gray intercept grilles to customize your Vaillancourt front entry door

Rectangular
1/4" x 5/8" grey

Choice of single or double hung windows

The single‑hung window consists of a fixed top section and a movable bottom panel, while the double‑hung window features two movable panels.

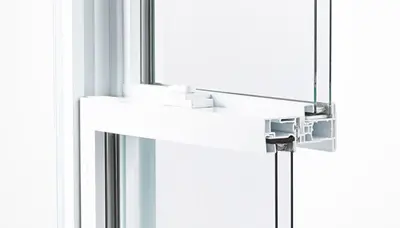

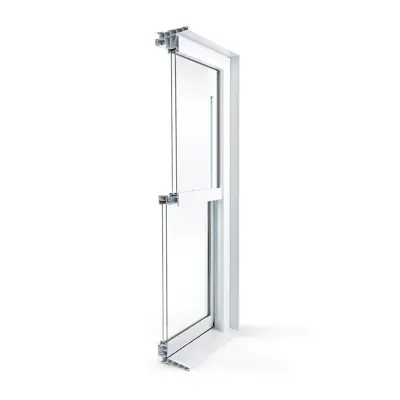

Single hung window cut-outs seen from the right with a fixed upper section and a moveable pane in the bottom

Standard characteristics

Hung windows

Constant force balance system for ease of use

The hung window’s stainless steel counterweight system allows the window to be lifted with very little effort, while supporting a heavy load without sagging over time. Additionally, the sliding action is provided by highly resistant shoes concealed inside the frame.

Resistant screen

The screen has a simple fastening system and is easy to clean. Its fibreglass construction makes it robust and weather‑resistant. The screen frame is made of enamelled aluminium.

Practical pane pivoting system

The hung window’s lock system, paired with an aesthetic, recessed tilt latch, allows you to tilt the panels easily. Using buttons at the ends makes cleaning your windows from the inside easy.

Sloped sill for effective drainage

Our hung window’s sloped sill is designed to promote effective water drainage to the exterior, reducing the risk of buildup and infiltration.

Vaillancourt energy‑efficient glass (double or triple)

Energy‑efficient glass features a microscopic metallic coating. Additionally, an inert gas (argon) is inserted between the panes, which helps retain heat during winter and keep cool air in during summer. Besides preventing condensation issues, energy‑efficient glass offers unmatched performance and substantial savings.

Energy performance

ENERGY STAR 2020 VERSION 5.0

Single hung windows – White and coloured PVC

Product model	Type of glass	Width of grilles mm (inches)	U Factor W/m²-K (Btu/h ft²-F)¹	Solar Heat Gain Coefficient (SHGC)²	ER factor³	NRC ref. no.
GSPVC-SU_DOUBLEC1_ARG_LOWE	Double	Aucun	1,59 (0,28)	0,53	36	NR6769-45955206-ES5
GSPVC-SU_TRIPLEC1_2ARG_1LOWE	Triple 1 Low E	Aucun	1,25 (0,22)	0,49	41	NR6769-45955208-ES5
GSPVC-SU_TRIPLEC1_2ARG_1LOWE_CARR<1	Triple 1 Low E	<25mm(<1)	1,25 (0,22)	0,43	37	NR6769-45955209-ES5
GSPVC-SU_TRIPLEC1_2ARG_2LOWE	Triple 2 Low E	Aucun	1,04 (0,18)	0,44	42	NR6769-45955215-ES5
GSPVC-SU_TRIPLEC1_2ARG_2LOWE_CARR<1	Triple 2 Low E	<25mm(<1)	1,04 (0,18)	0,39	40	NR6769-45955216-ES5
GSPVC-SU_TRIPLEC 1_2ARG_2LOWE_CARR?1	Triple 2 Low E	>=25mm(>1)	1,04 (0,18)	0,35	37	NR6769-45955217-ES5

Double hung windows – White and coloured PVC

Product model	Type of glass	Width of grilles mm (inches)	U Factor W/m²-K (Btu/h ft²-F)¹	Solar Heat Gain Coefficient (SHGC)²	ER factor³	NRC ref. no.
GDPVC-SU_DOUBLEC1_ARG_LOWE	Double	Aucun	1,59 (0,28)	0,51	34	NR6769-45955160-ES5
GDPVC-SU_TRIPLEC1_2ARG_1LOWE	Triple 1 Low E	Aucun	1,26 (0,22)	0,47	39	NR6769-45955161-ES5
GDPVC-SU_TRIPLEC1_2ARG_1LOWE_CARR<1	Triple 1 Low E	<25mm(<1)	1,26 (0,22)	0,42	36	NR6769-45955162-ES5
GDPVC-SU_TRIPLEC1_2ARG_2LOWE	Triple 2 Low E	Aucun	1,06 (0,18)	0,42	41	NR6769-45955164-ES5
GDPVC-SU_TRIPLEC1_2ARG_2LOWE_CARR<1	Triple 2 Low E	<25mm(<1)	1,06 (0,18)	0,37	38	NR6769-45955165-ES5

¹U factor – W/m²-K (Btu/h ft²-F): Indicates the rate of a material's transfer of heat. The lower the U factor, the higher the window's performance.

²Solar Heat Gain Coefficient (SHGC): Indicates the solar energy that can pass through the window. The higher the coefficient, the higher the window's performance.

³ER factor: Indicates a window's global energy efficiency. The higher the ER factor, the higher the window's performance.

R factor: Indicates the degree of resistance in a material's temperature transfer. The higher the R factor, the higher the window's performance.
