Why we love architectural windows

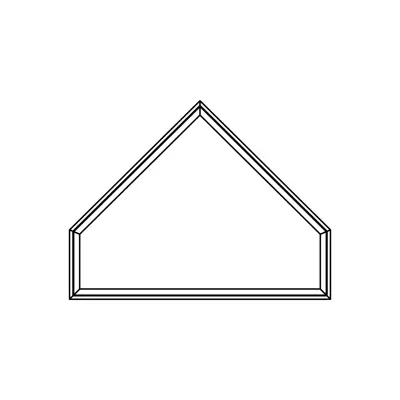

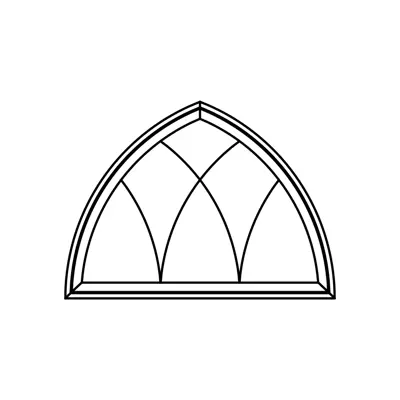

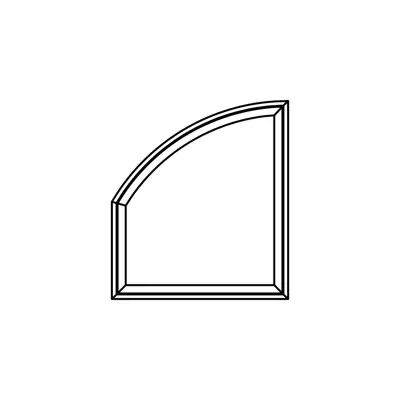

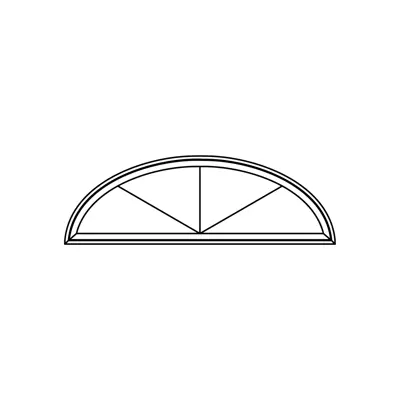

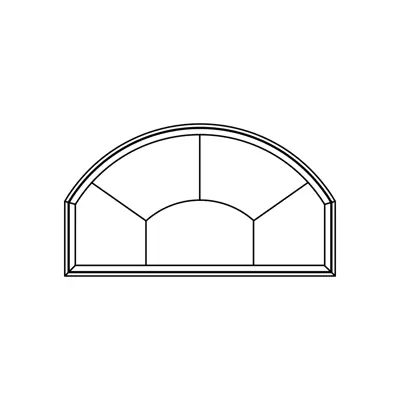

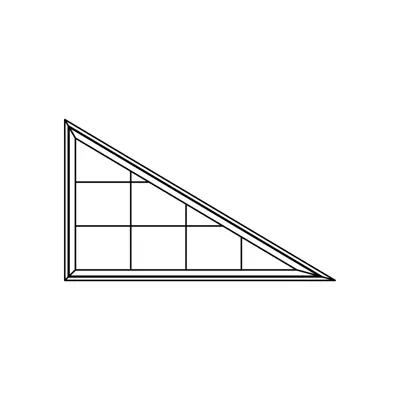

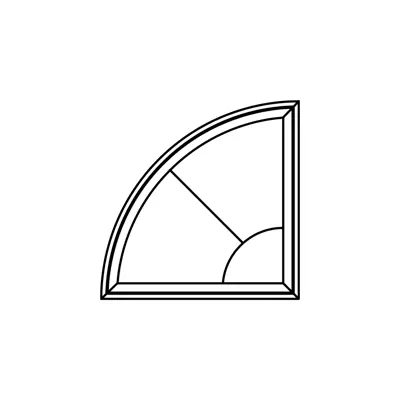

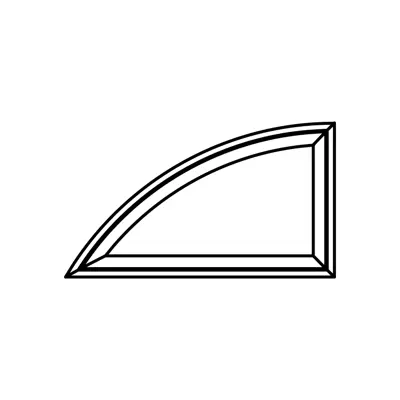

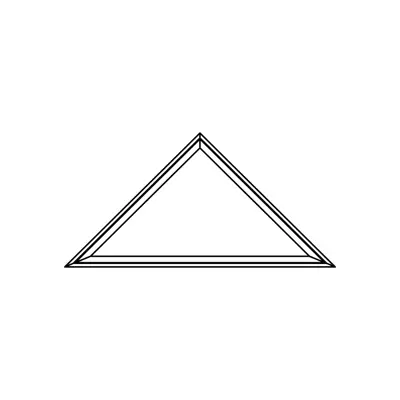

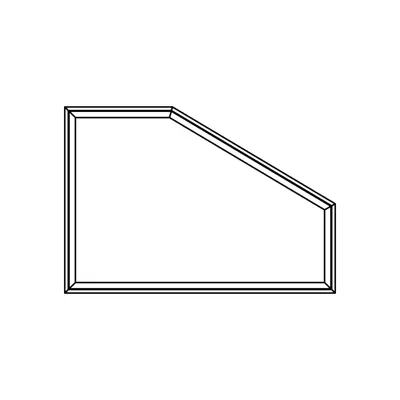

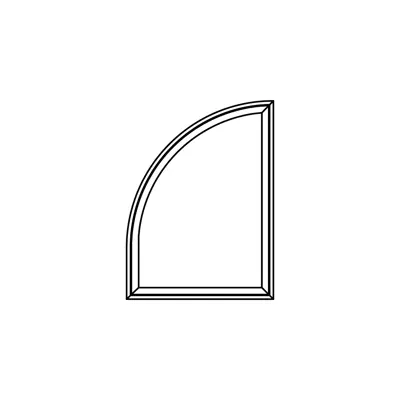

Custom shapes & styles

Dare to be original! With our architectural windows, you can choose the geometric shape you want: with its one-piece frame, thinner than our other models, it can be bent to your measurements. It's your chance to stand out from other homes in your neighbourhood.

Incomparable lighting

Use architectural windows alone or combined with any other window models to adjust glass surface and make your living space even brighter.

A touch of elegance

Without a doubt, architectural windows add a unique touch to your home with their distinctive, antique look. They also fit well with contemporary or country-style homes, depending on the shape you give them.

Brochures and guides View the product sheet

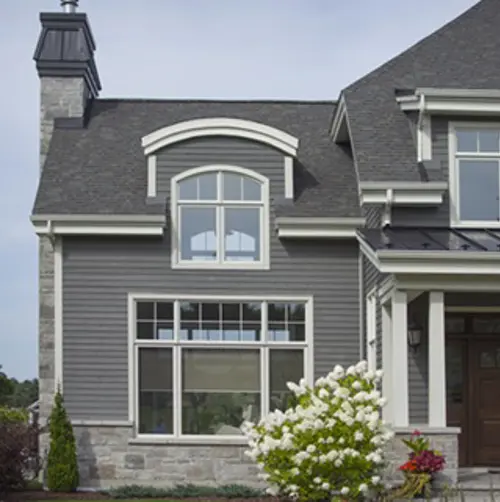

Vaillancourt Doors and Windows architectural white custom PVC and hybrid window on the cornice of a blue-grey house.

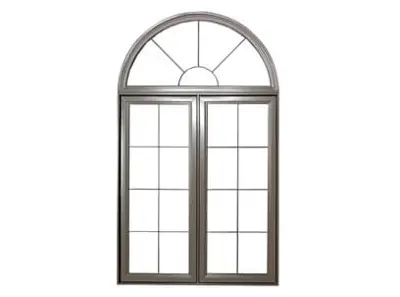

Vaillancourt custom architectural window with a half-moon hybrid shape at the top of the two vertical panes of glass

Half-moon hybrid architectural window

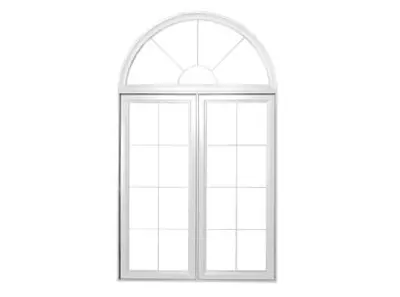

White PVC custom architectural window with two colonial panels and half-round shape on top of the architectural window

White PVC architectural window

Look at examples of our achievements

Available options

Custom architectural windows

Complete line of grilles and crossbars

Give your home a unique style by adding grilles sealed between two glass panes. Two‑inch crossbars glued to the interior and exterior surfaces of your windows will also give them a unique charm.

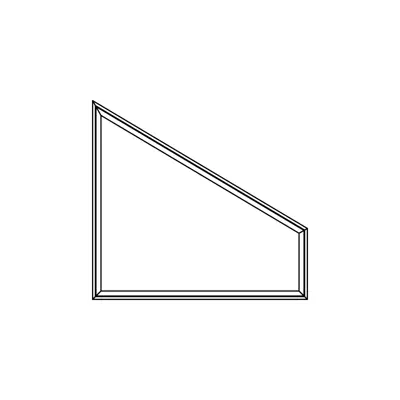

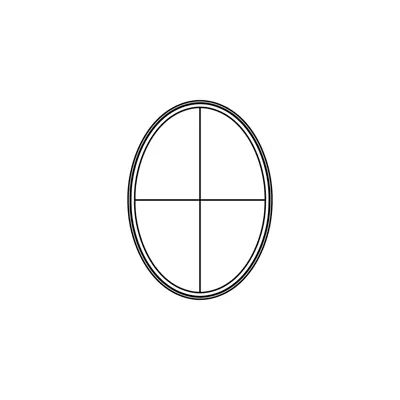

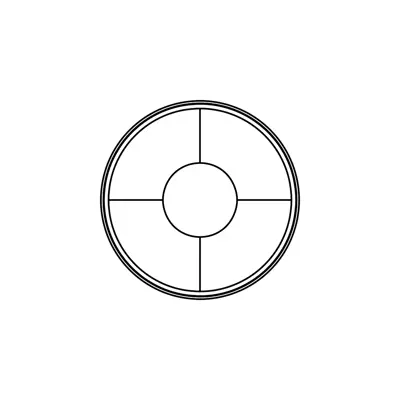

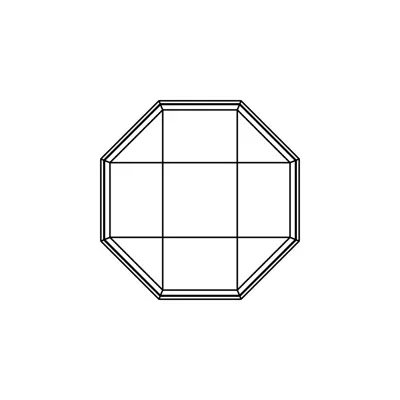

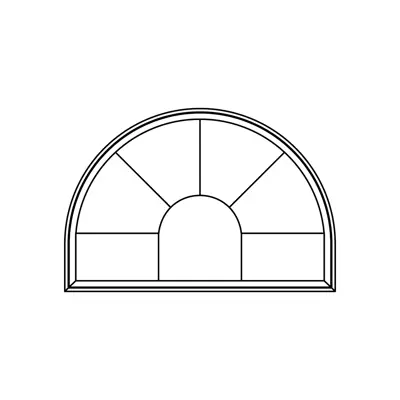

Illustration of the angular shape of grilles and crossbars for Vaillancourt’s PVC and hybrid aluminum architectural windows

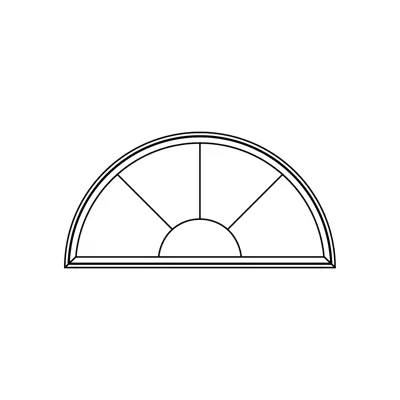

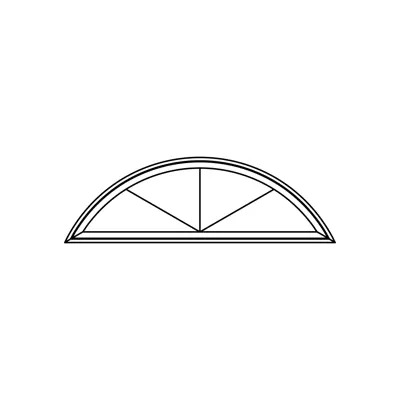

Illustration of grilles and two-inch crossbars in half-round shape for your Vaillancourt architectural windows

Choice of exterior trim mouldings

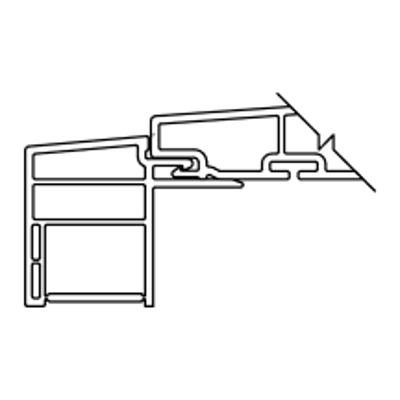

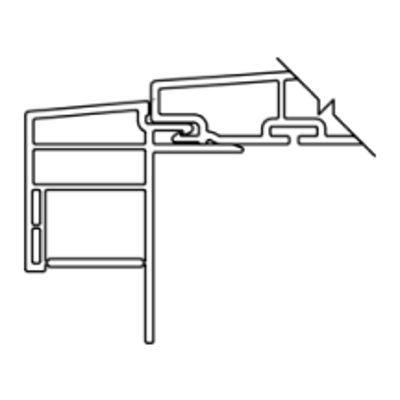

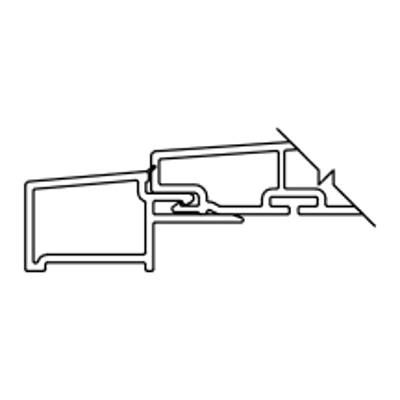

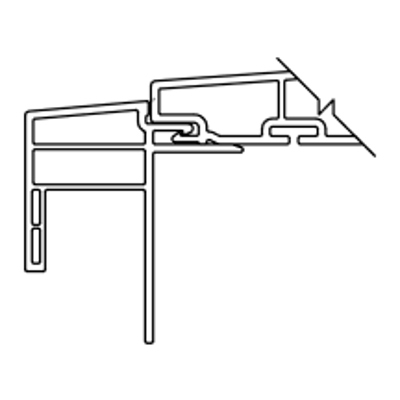

Exterior mouldings personalize your home and provide increased insulation. Here are applied mouldings for windows assembled with transoms and/or architectural windows (measurements are in inches).

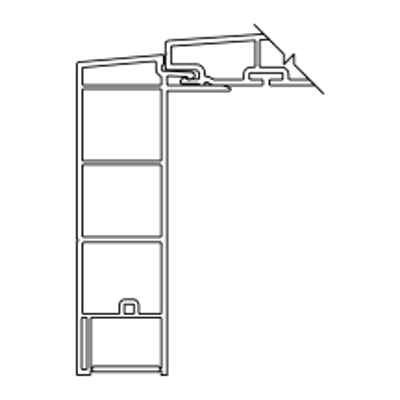

Cross-section diagram of an energy-efficient PVC window frame.

Brick
1 1/4" x 3 1/2"

Brick
1 1/8" x 1 1/8"

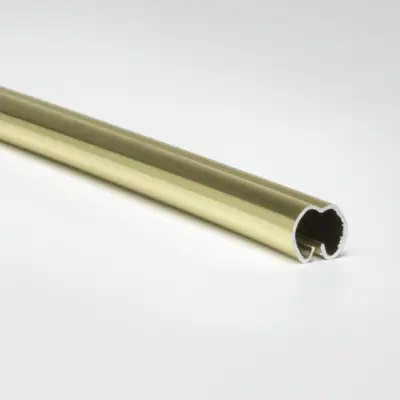

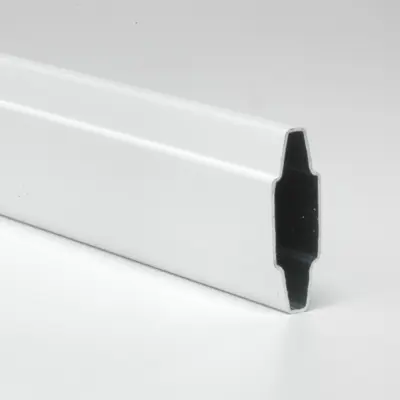

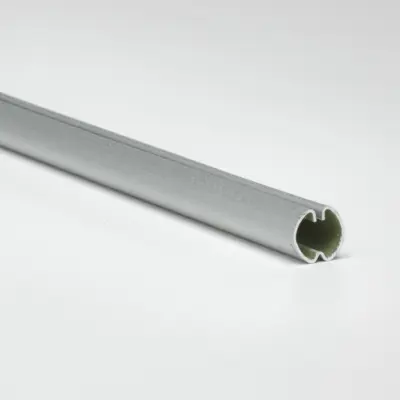

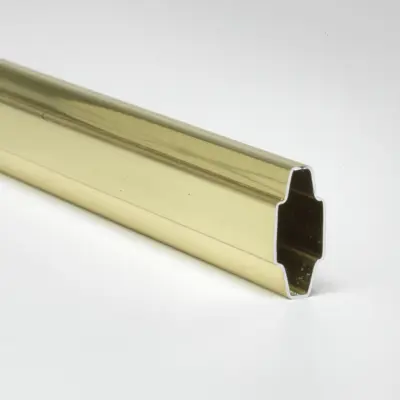

Variety of integrated grilles

Grilles integrated between two panes of glass are available in all colours and match the colour of the entire window.

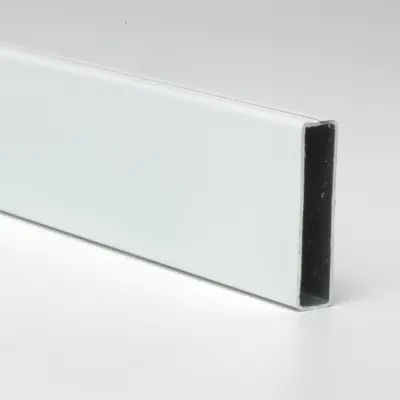

Aperçu de carrelage intégré rectangulaire 1/4" x 1" de couleur blanc pour personnaliser votre porte d’entrée de Vaillancourt

Rectangular
1/4" x 1" white

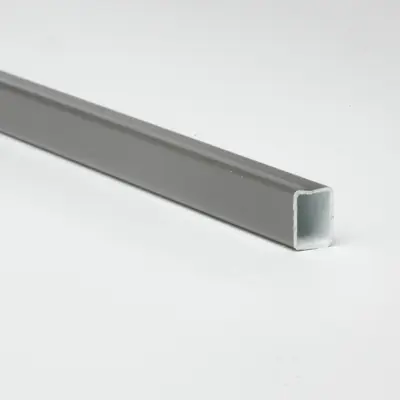

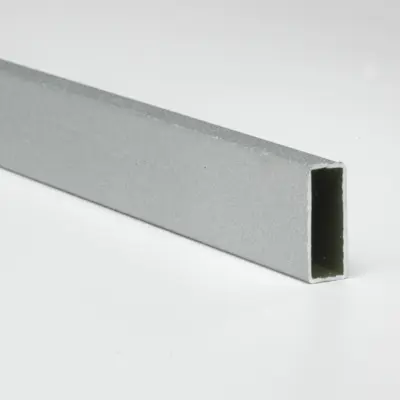

Rectangular 1/4" x 5/8" gray intercept grilles to customize your Vaillancourt front entry door

Rectangular
1/4" x 5/8" grey

Unlimited Choice of Colours

We have an unlimited choice of colours! Here are some of the most popular shades. If the colour you want is not among our standard shades, bring us your sample, and we will develop it for you!

See popular shades

Colour palette selection for custom door and window design.

Standard characteristics

Custom architectural windows

Flexible frame in the architectural window

It is possible to bend the thinner fixed monoblock frame of the architectural window into geometric shapes that will satisfy all tastes and styles. This type of frame is also used as a transom for doors and windows and offers a larger glass surface area thanks to its slimmed‑down frame.

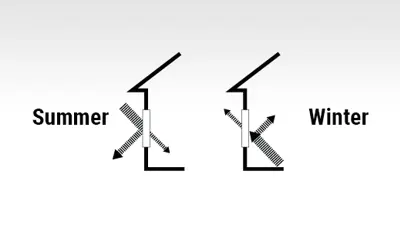

Vaillancourt energy‑efficient glass (double or triple)

Energy‑efficient glass features a microscopic metallic coating. Additionally, an inert gas (argon) is inserted between the panes, which helps retain heat in winter and cool air in summer. Besides preventing condensation issues, energy‑efficient glass offers unmatched performance and substantial savings.

Energy performance

ENERGY STAR 2020 VERSION 5.0

Architectural windows – White and coloured PVC

Product model	Type of glass	Width of grilles mm (inches)	U Factor W/m²-K (Btu/h ft²-F)¹	Solar Heat Gain Coefficient (SHGC)²	ER factor³	NRC ref. no.
PFAPVC-SU_DOUBLEC1_ARG_LOWE	Double	Aucun	1,52 (0,27)	0,60	41	NR0003845-7574927-ES5
PFAPVC-SU_DOUBLEC1_ARG_LOWE_CARR<1	Double	<25mm(<1)	1,52 (0,27)	0,54	38	NR0003845-7574928-ES5
PFAPVC-SU_TRIPLEC1_2ARG_1LOWE	Triple 1 Low E	Aucun	1,14 (0,20)	0,55	47	NR0003845-7574957-ES5
PFAPVC-SU_TRIPLEC1_2ARG_1LOWE_CARR<1	Triple 1 Low E	<25mm(<1)	1,14 (0,20)	0,49	43	NR0003845-7574958-ES5
PFAPVC-SU_TRIPLEC1_2ARG_1LOWE_CARR?1	Triple 1 Low E	>=25mm(>=1)	1,14 (0,20)	0,44	40	NR0003845-7574959-ES5
PFAPVC-SU_TRIPLEC1_2ARG_2LOWE	Triple 2 Low E	Aucun	0,91 (0,16)	0,49	48	NR0003845-7574962-ES5
PFAPVC-SU_TRIPLEC1_2ARG_2LOWE_CARR<1	Triple 2 Low E	<25mm(<1)	0,91 (0,16)	0,44	45	NR0003845-7574963-ES5
PFAPVC-SU_TRIPLEC1_2ARG_2LOWE_CARR?1	Triple 2 Low E	>=25mm(>1)	0,91 (0,16)	0,40	43	NR0003845-7574964-ES5
PFAPVC-SU_TRIPLE60_2ARG_2LOWE	Triple 2 Low E	Aucun	0,84 (0,15)	0,29	38	NR0003845-7574937-ES5
PFAPVC-SU_TRIPLE60_2ARG_2LOWE_CARR<1	Triple 2 Low E	<25mm(<1)	0,84 (0,15)	0,26	37	NR0003845-7574938-ES5
PFAPVC-SU_TRIPLE60_2ARG_2LOWE_CARR?1	Triple 2 Low E	>=25mm(>1)	0,84 (0,15)	0,23	35	NR0003845-7574939-ES5

Architectural windows – Hybrid

Product model	Type of glass	Width of grilles mm (inches)	U Factor W/m²-K (Btu/h ft²-F)¹	Solar Heat Gain Coefficient (SHGC)²	ER factor³	NRC ref. no.
PFAHYB-SU_DOUBLEC1_ARG_LOWE	Double	Aucun	1,54 (0,27)	0,60	41	NR0003845-7574837-ES5
PFAHYB-SU_DOUBLEC1_ARG_LOWE_CARR<1	Double	<25mm(<1)	1,54 (0,27)	0,54	37	NR0003845-7574838-ES5
PFAHYB-SU_TRIPLEC1_2ARG_1LOWE	Triple 1 Low E	Aucun	1,15 (0,20)	0,55	47	NR0003845-7574867-ES5
PFAHYB-SU_TRIPLEC1_2ARG_1LOWE_CARR<1	Triple 1 Low E	<25mm(<1)	1,15 (0,20)	0,49	43	NR0003845-7574868-ES5
PFAHYB-SU_TRIPLEC1_2ARG_1LOWE_CARR?1	Triple 1 Low E	>=25mm(>=1)	1,15 (0,20)	0,44	40	NR0003845-7574869-ES5
PFAHYB-SU_TRIPLEC1_2ARG_2LOWE	Triple 2 Low E	Aucun	0,92 (0,16)	0,49	48	NR0003845-7574872-ES5
PFAHYB-SU_TRIPLEC1_2ARG_2LOWE_CARR<1	Triple 2 Low E	<25mm(<1)	0,92 (0,16)	0,44	45	NR0003845-7574873-ES5
PFAHYB-SU_TRIPLEC1_2ARG_2LOWE_CARR?1	Triple 2 Low E	>=25mm(>=1)	0,92 (0,16)	0,40	43	NR0003845-7574874-ES5
PFAHYB-SU_TRIPLE60_2ARG_2LOWE	Triple 2 Low E	Aucun	0,86 (0,15)	0,29	38	NR0003845-7574847-ES5
PFAHYB-SU_TRIPLE60_2ARG_2LOWE_CARR<1	Triple 2 Low E	<25mm(<1)	0,86 (0,15)	0,26	36	NR0003845-7574848-ES5
PFAHYB-SU_TRIPLE60_2ARG_2LOWE_CARR?1	Triple 2 Low E	>=25mm(>1)	0,86 (0,15)	0,23	34	NR0003845-7574849-ES5

¹U factor – W/m²-K (Btu/h ft²-F): Indicates the rate of a material's transfer of heat. The lower the U factor, the higher the window's performance.

²Solar Heat Gain Coefficient (SHGC): Indicates the solar energy that can pass through the window. The higher the coefficient, the higher the window's performance.

³ER factor: Indicates a window's global energy efficiency. The higher the ER factor, the higher the window's performance.

R factor: Indicates the degree of resistance in a material's temperature transfer. The higher the R factor, the higher the window's performance.
